Docker 私服 - Harbor ​

1. Harbor 安装 ​

Harbor 官网安装教程

Harbor 支持在线安装包和离线安装包，本文以离线安装包作为示例进行安装。

  1. 下载 Harbor 离线安装包；

    从 Github Releases 页面下载离线安装包，如 harbor-offline-installer-v2.12.4.tgz。

  2. 解压离线安装包；

    将压缩包解压到当前目录：

    Bash
    $ tar xzvf harbor-offline-installer-v2.12.4.tgz

    得到一个 harbor 文件夹：

    Bash
    $ tree harbor
harbor
├── common.sh
├── harbor.v2.12.4.tar.gz
├── harbor.yml.tmpl
├── install.sh
├── LICENSE
└── prepare

1 directory, 6 files

    通过 prepare 工具，可以检测当前安装环境是否已准备就绪：

    Bash
    $ ./prepare
prepare base dir is set to /opt/dockers/harbor
no config file: /opt/dockers/harbor/harbor.yml

  3. 复制并编辑配置文件；

    Bash
    $ cp harbor.yml.tmpl harbor.yml
    diff
    @@ -2,20 +2,20 @@

 # The IP address or hostname to access admin UI and registry service.
 # DO NOT use localhost or 127.0.0.1, because Harbor needs to be accessed by external clients.
-hostname: reg.mydomain.com
+hostname: 192.168.31.30

 # http related config
 http:
   # port for http, default is 80. If https enabled, this port will redirect to https port
-  port: 80
+  port: 5001

 # https related config
-https:
+# https:
   # https port for harbor, default is 443
-  port: 443
+  # port: 443
   # The path of cert and key files for nginx
-  certificate: /your/certificate/path
-  private_key: /your/private/key/path
+  # certificate: /your/certificate/path
+  # private_key: /your/private/key/path
   # enable strong ssl ciphers (default: false)
   # strong_ssl_ciphers: false

@@ -49,7 +49,7 @@
 # Harbor DB configuration
 database:
   # The password for the user('postgres' by default) of Harbor DB. Change this before any production use.
-  password: root123
+  password: u2stAr3CciQxykW8L85b
   # The maximum number of connections in the idle connection pool. If it <=0, no idle connections are retained.
   max_idle_conns: 100
   # The maximum number of open connections to the database. If it <= 0, then there is no limit on the number of open connections.

    以上主要是做了如下修改：

    1. 将 hostname 改为服务器的 IP 地址，你也可以使用域名；
    2. 将 HTTP 的端口号改为 5001；
    3. 将 HTTPS 相关的配置注释掉，以便先禁用 HTTPS；
    4. 修改数据库的默认密码。

  4. 重新运行 prepare；

    Bash
    $ ./prepare
prepare base dir is set to /opt/dockers/harbor
Unable to find image 'goharbor/prepare:v2.12.4' locally
v2.12.4: Pulling from goharbor/prepare
259e20632a89: Pull complete
9d3c23c4fe1a: Pull complete
48e220409d89: Pull complete
a23d24267516: Pull complete
a523ceca9c6b: Pull complete
b91679e66cad: Pull complete
dee0791cf07d: Pull complete
6b240c6cb11d: Pull complete
fae1a7290768: Pull complete
48178d0316e5: Pull complete
Digest: sha256:43314c25e3bc1e5bdc99dd9a6e1834f78323986a777fe415ab333d01477c68c2
Status: Downloaded newer image for goharbor/prepare:v2.12.4
WARNING:root:WARNING: HTTP protocol is insecure. Harbor will deprecate http protocol in the future. Please make sure to upgrade to https
Generated configuration file: /config/portal/nginx.conf
Generated configuration file: /config/log/logrotate.conf
Generated configuration file: /config/log/rsyslog_docker.conf
Generated configuration file: /config/nginx/nginx.conf
Generated configuration file: /config/core/env
Generated configuration file: /config/core/app.conf
Generated configuration file: /config/registry/config.yml
Generated configuration file: /config/registryctl/env
Generated configuration file: /config/registryctl/config.yml
Generated configuration file: /config/db/env
Generated configuration file: /config/jobservice/env
Generated configuration file: /config/jobservice/config.yml
Generated and saved secret to file: /data/secret/keys/secretkey
Successfully called func: create_root_cert
Generated configuration file: /compose_location/docker-compose.yml
Clean up the input dir

    当环境检测 OK，prepare 会去拉取一些它需要的初始镜像，并自动根据咱们上述的配置生成对应的配置文件。

  5. 运行 install.sh 开始安装；

    Bash
    $ sudo ./install.sh

    install.sh 会通过 Docker Compose 运行 Harbor 服务。检查服务运行状态：

    Bash
    $ sudo docker compose ps
NAME                IMAGE                                 COMMAND                  SERVICE       CREATED         STATUS                   PORTS
harbor-core         goharbor/harbor-core:v2.12.4          "/harbor/entrypoint.…"   core          3 minutes ago   Up 3 minutes (healthy)
harbor-db           goharbor/harbor-db:v2.12.4            "/docker-entrypoint.…"   postgresql    3 minutes ago   Up 3 minutes (healthy)
harbor-jobservice   goharbor/harbor-jobservice:v2.12.4    "/harbor/entrypoint.…"   jobservice    3 minutes ago   Up 3 minutes (healthy)
harbor-log          goharbor/harbor-log:v2.12.4           "/bin/sh -c /usr/loc…"   log           3 minutes ago   Up 3 minutes (healthy)   127.0.0.1:1514->10514/tcp
harbor-portal       goharbor/harbor-portal:v2.12.4        "nginx -g 'daemon of…"   portal        3 minutes ago   Up 3 minutes (healthy)
nginx               goharbor/nginx-photon:v2.12.4         "nginx -g 'daemon of…"   proxy         3 minutes ago   Up 3 minutes (healthy)   0.0.0.0:5001->8080/tcp, [::]:5001->8080/tcp
redis               goharbor/redis-photon:v2.12.4         "redis-server /etc/r…"   redis         3 minutes ago   Up 3 minutes (healthy)
registry            goharbor/registry-photon:v2.12.4      "/home/harbor/entryp…"   registry      3 minutes ago   Up 3 minutes (healthy)
registryctl         goharbor/harbor-registryctl:v2.12.4   "/home/harbor/start.…"   registryctl   3 minutes ago   Up 3 minutes (healthy)

    警告

    后续如果有编辑、更新了 harbor.yml 文件，则需要先通过 docker compose down 停止并删除当前服务实例，再重新运行 install.sh 来启动新的服务实例，这样新的配置才会生效。

  6. 登录 Harbor 控制台；

    默认的用户名密码是 admin / Harbor12345，可以在登录后根据需要进行修改。

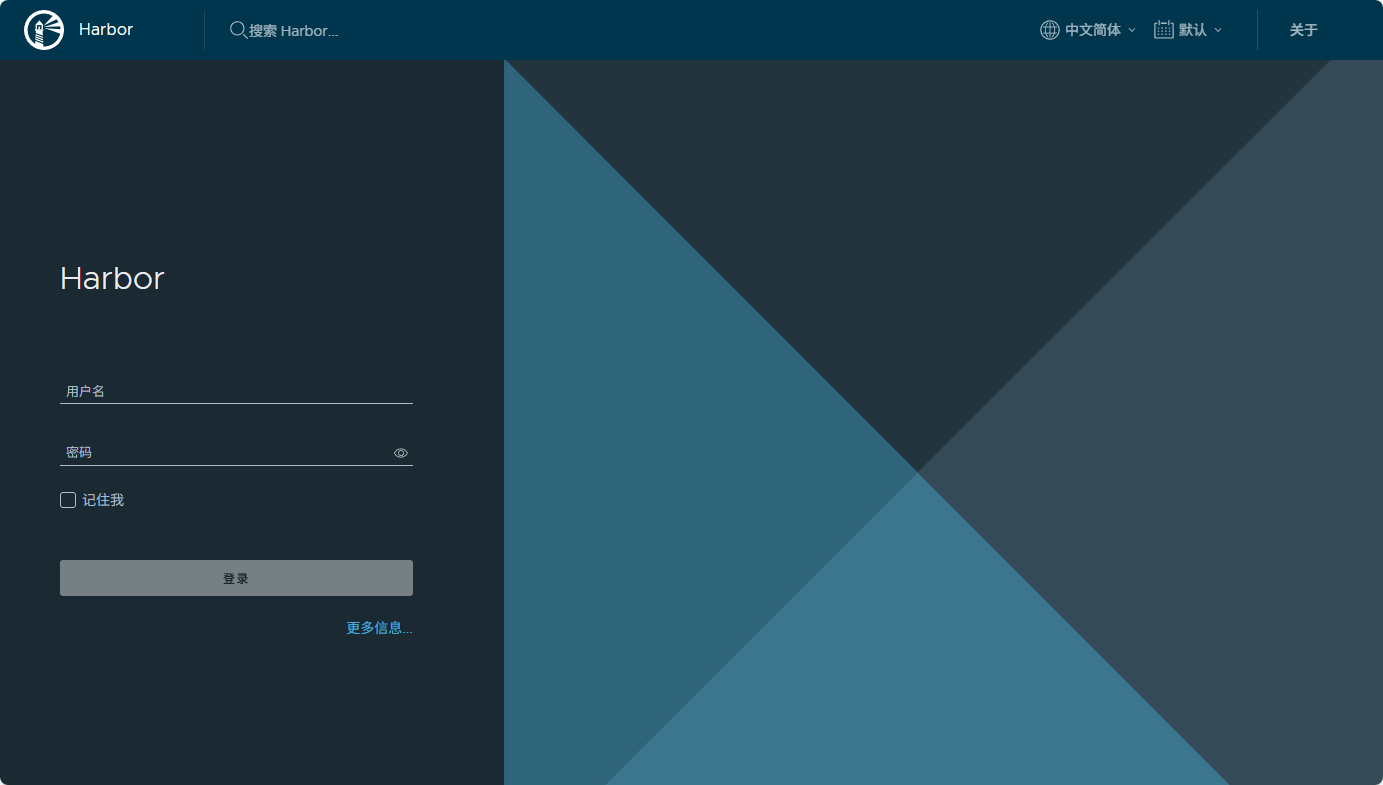

    图 1.1 - 登录页

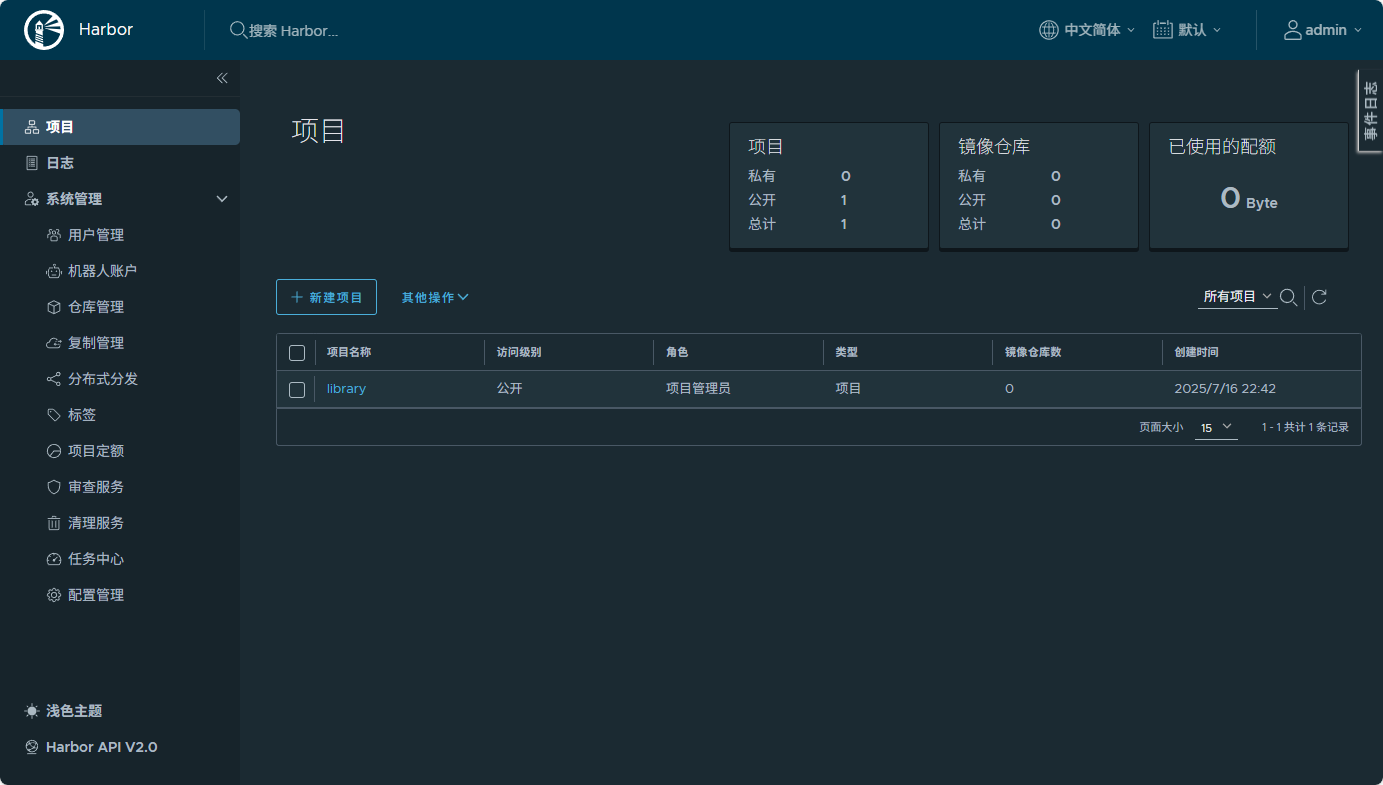

    图 1.2 - 首页

2. Docker 客户端配置 ​

默认情况下，Docker 要求镜像仓库使用 HTTPS 协议并具备有效、受信任的 SSL/TLS 证书以确保通信安全。如果一个仓库使用 HTTP（不安全）或 HTTPS 但证书是自签名的（未受信任），Docker 会拒绝连接。通过将仓库地址添加到 insecure-registries 列表，Docker 守护进程可以绕过严格的 TLS 验证，与该仓库进行交互。

  1. 打开 /etc/docker/daemon.json（如文件不存在，可以手动创建）添加如下配置：

    JSON
    {
  "insecure-registries": ["192.168.31.30:5001"]
}

  2. 重启 Docker 服务：

    Bash
    sudo systemctl restart docker

3. 推送和拉取 ​

  1. 在 Web 控制台中新建项目，例如 my-priv；

  2. Docker 客户端登录

    Bash
    $ docker login -uadmin 192.168.31.30:5001

  3. 在项目中标记镜像

    Bash
    $ docker tag SOURCE_IMAGE[:TAG] 192.168.31.30:5001/my-priv/REPOSITORY[:TAG]

  4. 推送镜像到当前项目

    Bash
    $ docker push 192.168.31.30:5001/my-priv/REPOSITORY[:TAG]

    等待推送完成后可以在 Web 控制台中看到该镜像。

  5. 拉取服务端镜像到本地：

    Bash
    $ docker pull 192.168.31.30:5001/my-priv/REPOSITORY[:TAG]

    可以直接在 Web 控制台中复制拉取命令。

4. 配置 HTTPS ​

可以使用 Nginx 代理 HTTPS 请求，也可以直接修改 harbor.yml 文件以启用 HTTPS：

YAML
# https related config
https:
  # https port for harbor, default is 443
  port: 443
  # The path of cert and key files for nginx
  certificate: /your/certificate/path
  private_key: /your/private/key/path
  # enable strong ssl ciphers (default: false)
  # strong_ssl_ciphers: false

需要注意的是，需要先通过 docker compose down 停止并删除当前服务实例，再重新运行 install.sh 来启动新的服务实例，这样修改后的配置才会生效。
